General Specifications
| Part No. |

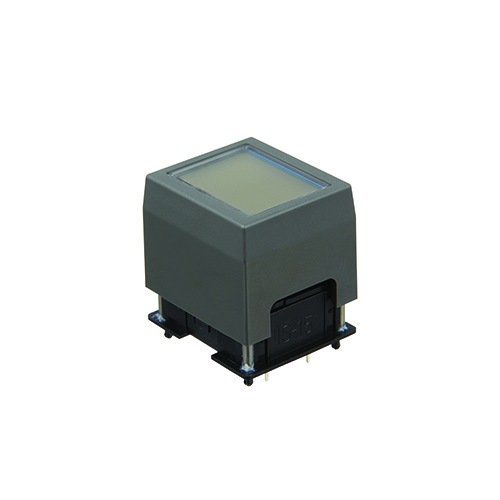

IS15EBFP4RGB |
| Description |
Wide View/Long Travel LCD 64 x 32 Pushbutton |
| Name |
SmartSwitch |
| Series |
SmartSwitch |
| Poles |
SPST |
| Circuits |
Off-On |
| Rating |
0.1 |
Illumination |
Illuminated |
| Mounting Type |
Through Hole |
| Contact Finish |
Gold Plating |
| Contact Rating |
100mA 12V DC |
| Actuator Type |
23.13mm L x 20.59mm W |
| Panel Cutout Shape |
17.0mm L x 13.0mm W |
| Termination Style |
Straight PC Terminals |
| SM Type |
Pushbutton, LCD |
| Display Mode |
Black and White, FSTN Positive |
| LED Color |
RGB |
