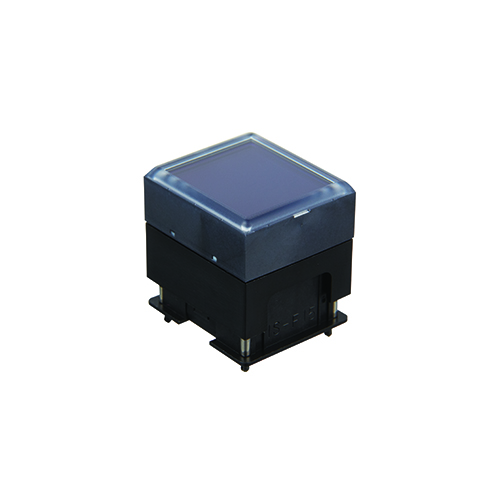

ISF15ACP4

SmartSwitch Programmable Switches & Displays

General Specifications

Part No. ISF15ACP4
Description Frameless OLED Pushbutton
Name SmartSwitch
Series SmartSwitch
Poles SPST
Circuits Off-On
Rating 0.1
Illumination Illuminated
Mounting Type Through Hole
Contact Finish Gold Plating
Contact Rating 100mA 12V DC
Actuator Type 23.13mm L x 20.59mm W
Panel Cutout Shape 21.3mm L x 18.7mm W
Termination Style Straight PC Terminals
SM Type Pushbutton, OLED
Display Mode 65536 Colors, Passive Matrix
