General Specifications
| Part No. | FR02FC10P-R |
|---|---|

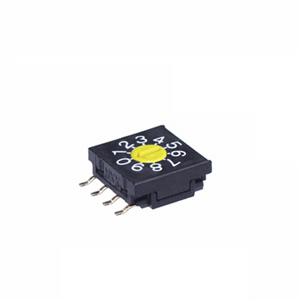

| Description | 10mm Ultra-Thin SMT DIP Rotary Switches |
| Name | ROTARY SWITCHES |
| Series | FR02 |
| Poles | BCD Complement |
| Current Rating | 100mA |
| Rating | 0.1 | Illumination | Non-Illuminated |
| Mounting Type | Surface Mount |
| Keywords | SMT,Complement Coded |
| Contact Finish | Gold Plating |
| Rating (AC) | 5VDC |
| No Positions | 10 |
| Actuator Type | Screwdriver |
| Termination Style | Gull-wing Terminals |
