General Specifications

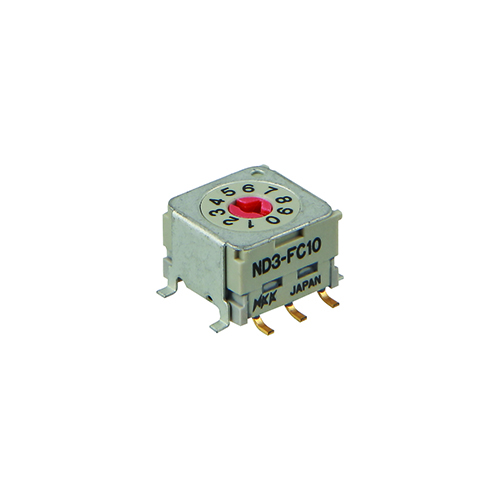

Part No. | ND3FC10B |
---|---|
Description | 8mm Process Sealed SMT DIP Rotary Switches |
Name | ROTARY SWITCHES |
Series | ND3 |
Poles | BCD Complement |
Current Rating | 100mA |
Rating | 0.1 | Illumination | Non-Illuminated |
Mounting Type | Surface Mount |
Keywords | SMT, Complement Coded |
Contact Finish | Gold Plating |
Voltage Rating | 5VDC |
No Positions | 10 |
Actuator Type | Screwdriver |
Termination Style | Gull-wing for Upright with Bracket Mount |
