Discontinued Product (30.06.2023)

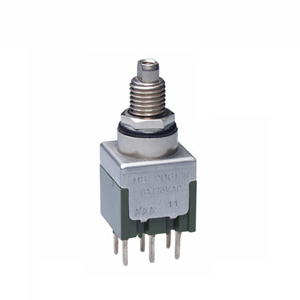

MB2061SD8W03

Pushbutton switches

General Specifications

Part No. MB2061SD8W03
Description Not recommended for new designs.
Order due date : 2023/06/30
New Part Num.:MBN25SD8W03
New PN Available to Order : 2024/01/15
Name PUSHBUTTON SWITCHES
Series MB2000
Poles DPDT
Circuits On-(On)
Current Rating 6A (AC), 3A (DC)
Rating 6
Illumination Non-Illuminated
Mounting Type Panel Mount
Keywords Epoxy Sealed Terminals
Contact Finish Silver
Rating (AC) 125V
Rating (DC) 30V
Actuator Type Round Cap(Optional Accessory)
Panel Cutout Dimensions 6.5Dia.
Termination Style Straight PC Terminals
Standards & Approvals CSA,UL
