General Specifications
| Part No. | A28KB |
|---|---|

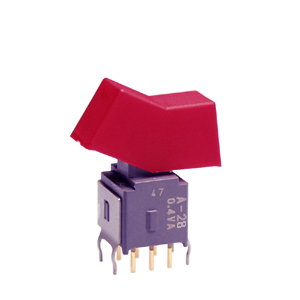

| Description | Sealed Subminiature Rocker Switches |
| Name | ROCKER SWITCHES |
| Series | A |
| Poles | DPDT |
| Circuits | (On)-Off-(On) |
| Current Rating | 0.4VA (AC/DC) |
| Rating | 0.4 | Illumination | Non-Illuminated |
| Mounting Type | Through Hole |
| Keywords | Process Sealed |
| Rating (AC) | 28V |
| Rating (DC) | 28V |
| Actuator Type | Rockers(Optional Accessory) |
| Panel Cutout Shape | No Marking |
| Termination Style | Straight PC Terminals with Bracket |
