Discontinued Product (29.06.2023)

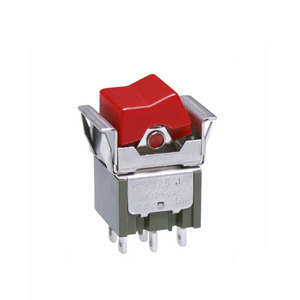

M2025TJW01

Rocker switches

Alternate Product

General Specifications

Part No. M2025TJW01
Description Not recommended for new designs.
Order due date : 2023/06/30
New Part Num.: MN25TJW01
New PN Available to Order : 2023/7/3
Name ROCKER SWITCHES
Series M
Poles DPDT
Circuits On-(On)
Current Rating 6A (AC), 4A (DC)
Rating 6
Illumination Non-Illuminated
Mounting Type Panel Mount, Snap-In
Contact Finish Silver
Rating (AC) 125V
Rating (DC) 30V
Actuator Type Rocker Cap(Optional Accessory)
Panel Cutout Shape No Marking
Panel Cutout Dimensions 15.9×12.5
Termination Style Solder Lug
Standards & Approvals UL
