General Specifications
| Part No. |

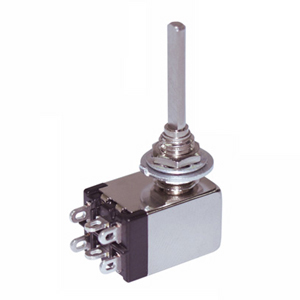

MRT23-A |
| Description |
Miniature Power Level Rotary Switches |
| Name |
ROTARY SWITCHES |
| Series |
MR |
| Poles |
DPDT |
| Circuits |
On-Off-On |
| Current Rating |
5A (AC), 3A (DC) |
| Rating |
5 |
Illumination |
Non-Illuminated |
| Mounting Type |
Panel Mount |
| Keywords |
Sealed - Flux Protection |
| Rating (AC) |
125V |
| Rating (DC) |
30V |
| No Positions |
3 |
| Actuator Type |
KNOBS/Plain |
| Panel Cutout Dimensions |
6.2Dia |
| Termination Style |
Solder Lug |
| Standards & Approvals |
UL |
