General Specifications

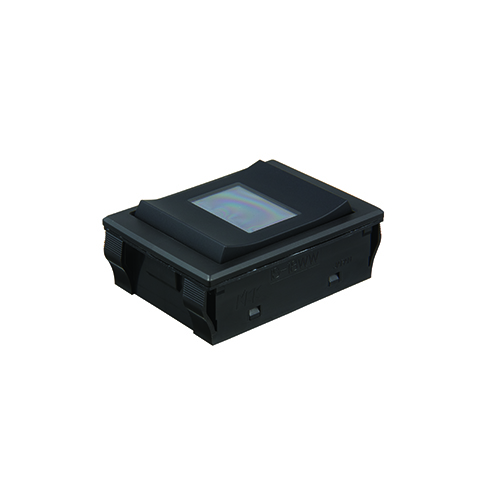

Part No. | IS18WWC1W |
---|---|
Description | OLED Rocker Switch |
Name | SmartSwitch |
Series | SmartSwitch |
Poles | SP3T | Illumination | Illuminated |
Mounting Type | Panel Mount, Snap-In |
Contact Rating | 3VA MAX. DC |
Actuator Type | 38.8mm L x 30.6mm W |
Panel Cutout Shape | 19.16mm L x 13.2mm W |
Termination Style | Connector |
SM Type | Rocker, OLED |
Display Mode | 1 Color, Passive Matrix |
