General Specifications

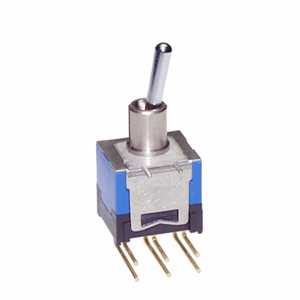

| Part No. | D22029H |
|---|---|
| Description | PCB Mount Miniature Toggle Switches |
| Name | TOGGLE SWITCHES |
| Series | D2 |
| Poles | DPDT |
| Circuits | On-Off-(On) |
| Current Rating | 0.4VA (AC/DC) |
| Rating | 0.4 | Illumination | Non-Illuminated |
| Mounting Type | Through Hole |
| Rating (AC) | 48V |
| Rating (DC) | 48V |
| Actuator Type | 10.5mm Bat Lever |
| Termination Style | Right Angle PC Terminals |
