General Specifications

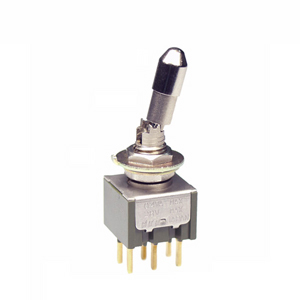

| Part No. | M2029LL4G03 |
|---|---|
| Description | Not recommended for new designs. Order due date : 2023/06/30 New Part Num.:MN29LL4G03 New PN Available to Order : 2024/01/15 |
| Name | TOGGLE SWITCHES |
| Series | M |
| Poles | DPDT |
| Circuits | On-Off-(On) |
| Current Rating | 0.4VA (AC/DC) |
| Rating | 0.4 | Illumination | Non-Illuminated |
| Mounting Type | Panel Mount |
| Contact Finish | Gold Plating |
| Rating (AC) | 28V |
| Rating (DC) | 28V |
| Actuator Type | 5.1mm Dia. Locking Lever |
| Panel Cutout Dimensions | 6.5Dia. |
| Termination Style | Straight PC Terminals |
