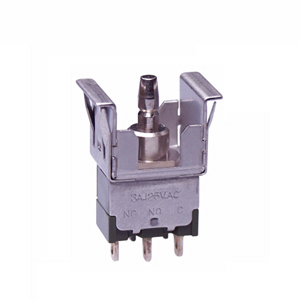

MB2511JW01

Alternate Product

• MBNF15JW01

General Specifications

Part No.	MB2511JW01
Description	Not recommended for new designs. Order due date : 2023/06/30 New Part Num.: MBNF15JW01 New PN Available to Order : 2023/7/3
Name	PUSHBUTTON SWITCHES
Series	MB2500
Poles	SPDT
Circuits	On-(On)
Current Rating	3A (AC)
Rating	6
Illumination	Non-Illuminated
Mounting Type	Panel Mount, Snap-In
Keywords	Epoxy Sealed Terminals
Contact Finish	Silver
Rating (AC)	125V
Actuator Type	Round Cap(Optional Accessory)
Panel Cutout Dimensions	12.5×15
Termination Style	Solder Lug
Standards & Approvals	CSA,UL

Accessories

• Bezel/Black/EM,MB24,MB25:AT207A
• Bezel/White/EM,MB24,MB25:AT207B
• Bezel/Red/EM,MB24,MB25:AT207C
• Bezel/Yellow/EM,MB24,MB25:AT207E
• Bezel/Green/EM,MB24,MB25:AT207F
• Bezel/Blue/EM,MB24,MB25:AT207G
• Bezel/Glay/EM,MB24,MB25:AT207H
• Bezel for 2 AT617 LEDs/Black:AT212A
• Bezel for 2 AT618 LEDs/Black:AT213A
• 11.5mm Square Cap/Black:AT465A
• 11.5mm Square Cap/White:AT465B
• 11.5mm Square Cap/Red:AT465C
• 11.5mm Square Cap/Yellow:AT465E
• 11.5mm Square Cap/Green:AT465F
• 11.5mm Square Cap/Blue:AT465G
• Single Element LED/Red/AT212 Bezel:AT617C
• Single Element LED/Yellow/AT212 Bezel:AT617E
• Single Element LED/Green/AT212 Bezel:AT617F
• Single Element LED/Red/AT213 Bezel:AT618C
• Single Element LED/Yellow/AT213 Bezel:AT618E
• Single Element LED/Green/AT213 Bezel:AT618F
