General Specifications

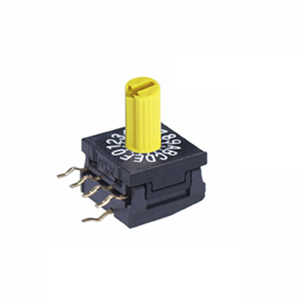

| Part No. | FR01KC16H-S |
|---|---|
| Description | 10mm DIP Rotary Switches |
| Name | ROTARY SWITCHES |
| Series | FR01 |
| Poles | Hexadecimal Complement |
| Current Rating | 100mA |
| Rating | 0.1 | Illumination | Non-Illuminated |
| Mounting Type | Through Hole, Right Angle |
| Keywords | Complement Coded |
| Contact Finish | Gold Plating |
| Rating (AC) | 5VDC |
| No Positions | 16 |
| Actuator Type | Plastic Shaft |
| Termination Style | Right Angle PC Terminals |
