General Specifications

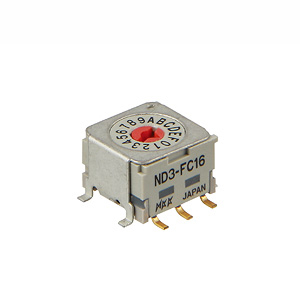

| Part No. |
ND3FC16B-R |
| Description |
8mm Process Sealed SMT DIP Rotary Switches |
| Name |
ROTARY SWITCHES |
| Series |
ND3 |
| Poles |
Hexadecimal Complement |
| Current Rating |
100mA |
| Rating |
0.1 |
Illumination |
Non-Illuminated |
| Mounting Type |
Surface Mount |
| Keywords |
SMT, Complement Coded |
| Contact Finish |
Gold Plating |
| Voltage Rating |
5VDC |
| No Positions |
16 |
| Actuator Type |
Screwdriver |
| Termination Style |
Gull-wing for Upright with Bracket Mount |
